PXe-XT2640 PXe- XT2640 PRECISION MULTI‐CHANNEL HARMONIC POWER ANALYZER

  • The PXe-XT2640 three phase power analyser provides a comprehensive solution for power analysis and harmonics assessment. Its versatility, multi-channel capabilities, and integration with a PLC make it suitable for a wide range of applications, including power testing, automation, and monitoring systems
  • Single Phase
  • Three Phase

Specifications and Features

Multi-Channel Measurement

Three single-phase power analysers into a single chassis
Support up to four channels
Flexible configuration options

Three-Phase Measurements

Support three-phase measurements (3-wire and 4-wire configurations)

Harmonics Analysis

Measure and analyse harmonic content in the electrical signals

Ethernet Connectivity

Connect multiple analysers via Ethernet (enabling simultaneous multi-channel measurements)

Customisation Options

Customise measurement settings for each channel (including single-phase, two-phase, or three-phase configurations)
Supports various signal filtering options, measurement coupling, display result smoothing, and efficiency grouping
Voltage and current input channels can be synchronised

Integration with Siemens S7 PLC

Automated Control and Monitoring

Industries Served

  • Automated Production Testing
  • Ballast Testing
  • Consumer Products
  • Engineering Labs
  • Instrument Maintenance & Repair
  • Peak Power & Consumption Measurements
  • Light Output Verification
  • Product Compliance Testing
  • Test Labs

Display Screen Features

Harmonics Screen
Harmonics Displays with Limits

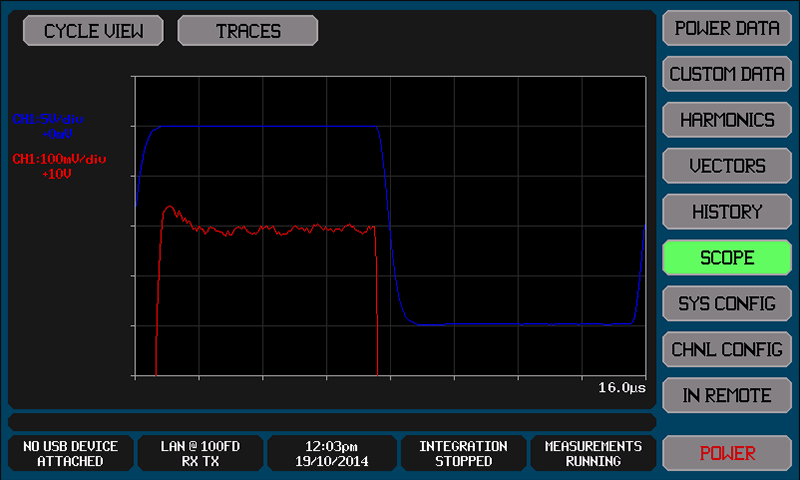

Cycle View

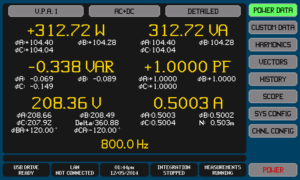

Power Data Screen

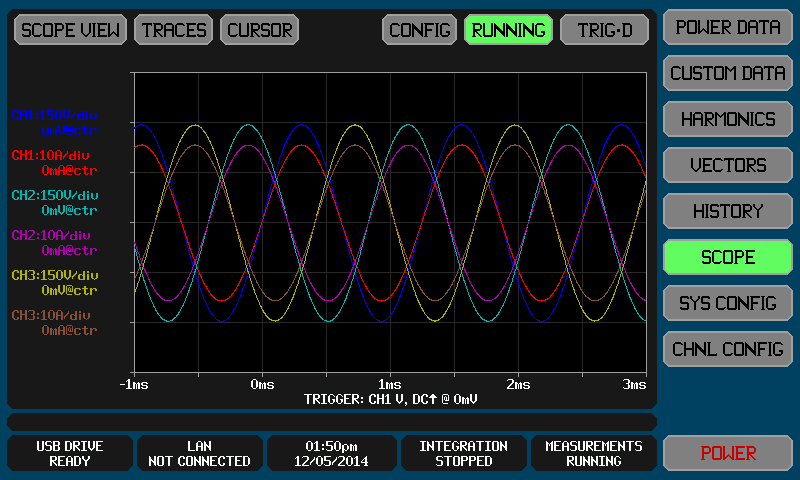

Scope View
Vector Diagrams

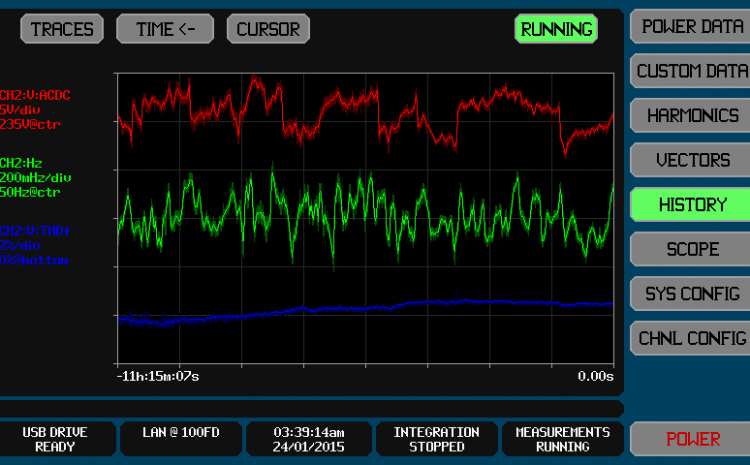

History Displays
Oscilloscope Displays

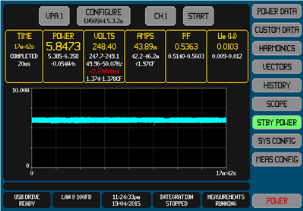

Standby Power

Specifications
